Elinchrom ONE - Off-Camera Flash Kit
Elinchrom ONE - Off-Camera Flash Kit

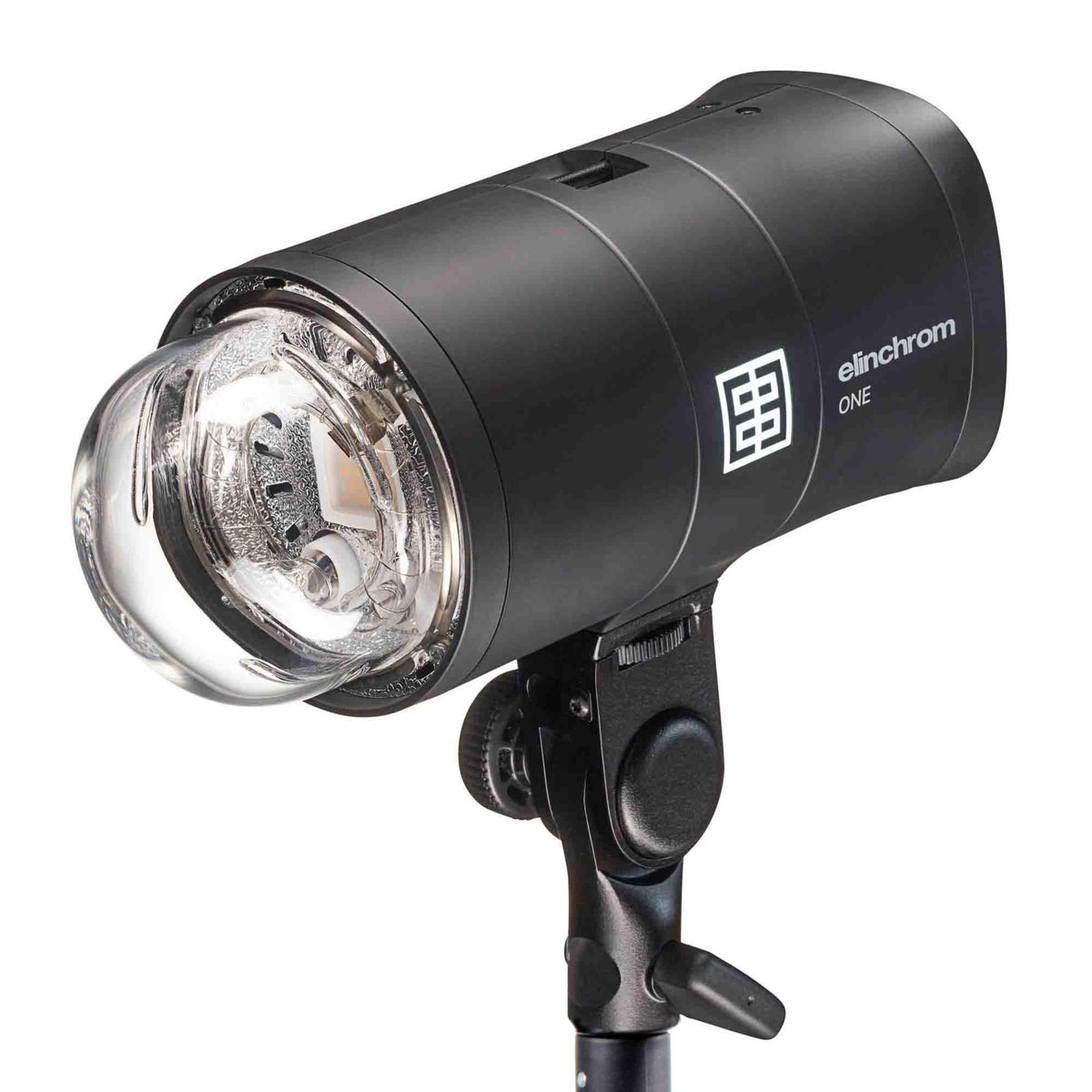

Elinchrom ONE is a portable off-camera flash built for photographers and content creators who need dependable light in a compact format. Weighing only 1.5 kg, it combines 131 Ws of output with an integrated Li-Ion battery, USB-C Active Charging, TTL, HSS and a streamlined touch interface in a low-profile design. It is a practical lighting tool for creators who want portability, speed and control without carrying more than they need.
- Super compact – only 1.5 kg
- Up to 725 flashes at full power
- TTL and HSS
- Active Charging via USB-C
- Touchscreen interface
- LED for video with adjustable colour temperature
- Bluetooth and WLAN

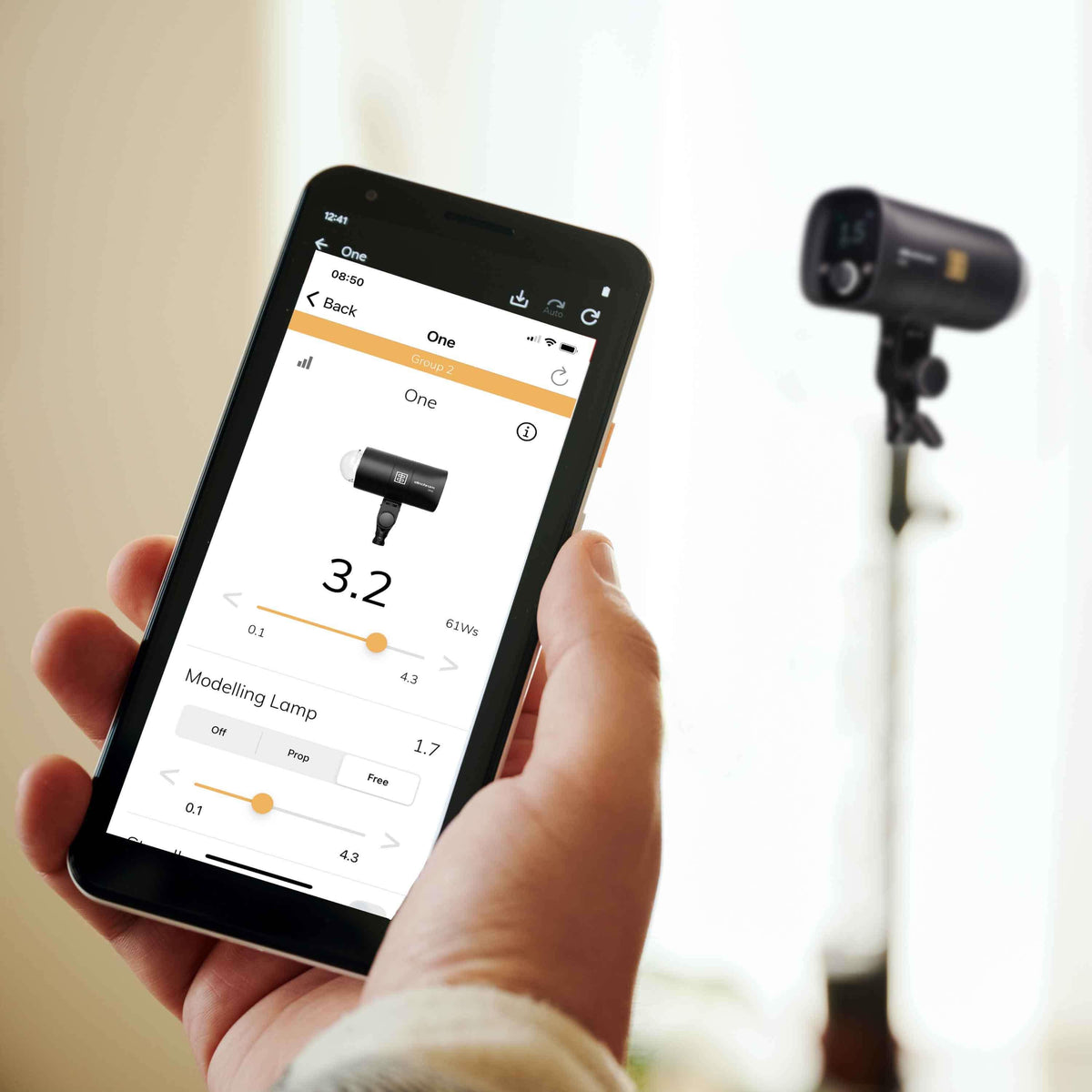

- Elinchrom App for iOS and Android
- Elinchrom Studio Software for computer
Keep a low profile

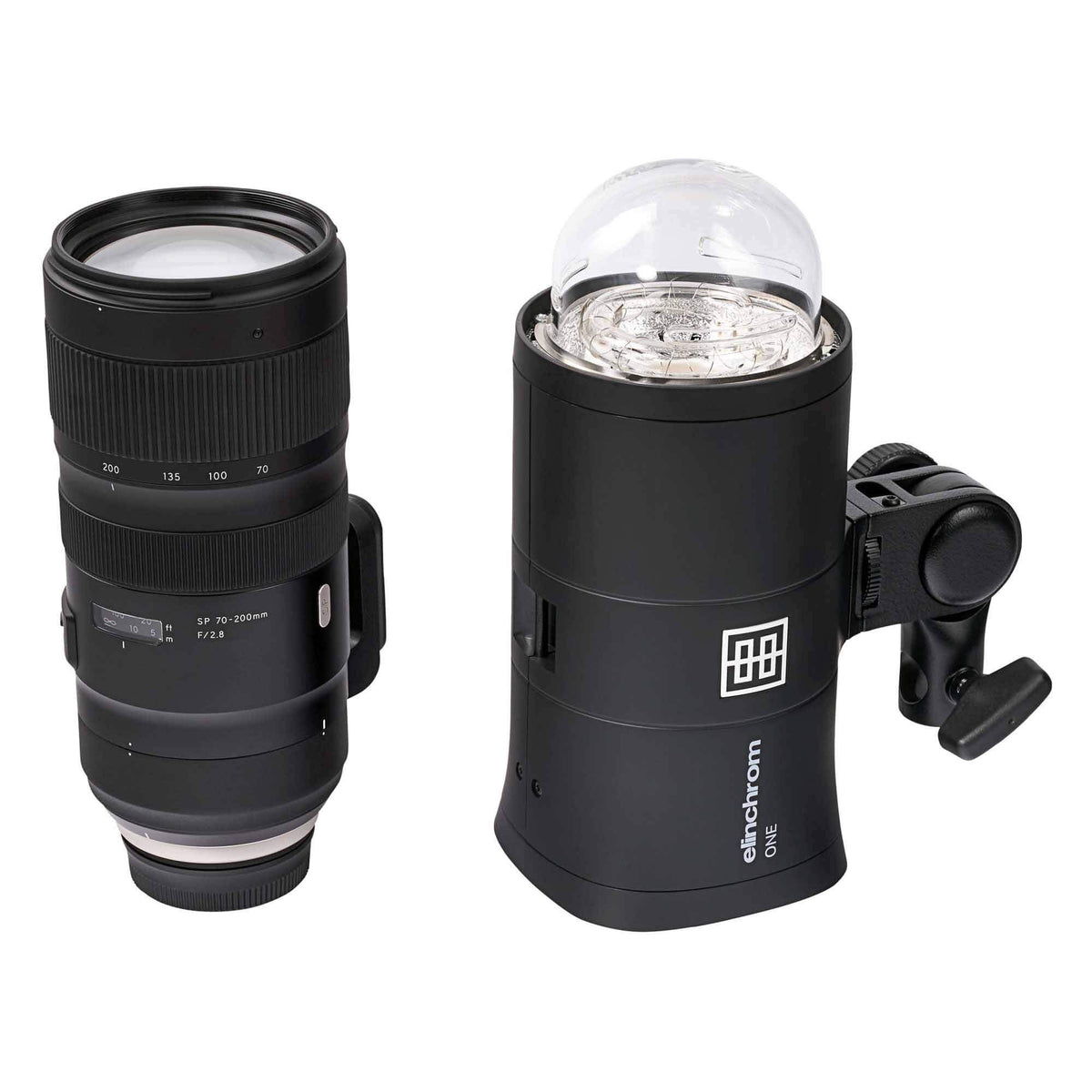

Add the flexibility of off-camera flash and light shaping to your kit without adding unnecessary bulk. Similar in size and weight to a 70–200 mm lens, the Elinchrom ONE is easy to carry and easy to keep close, whether you are travelling light, working on location or building a smaller everyday setup.
Built for location work
The integrated Li-Ion battery keeps the Elinchrom ONE compact and easy to handle while also improving protection for outdoor use. Because charging happens via USB-C, you are not tied to proprietary chargers or spare batteries. Charge from mains power, a power bank or another compatible USB-C source and keep your setup simpler wherever you work.
Keep moving without interruption
With up to 725 full-power flashes on a single charge, the Elinchrom ONE is ready for longer shoots. Active Charging also allows you to continue shooting while connected to a power source, regardless of battery level. It is a practical feature for photographers who want fewer interruptions and more freedom during the shoot.
Shape your story

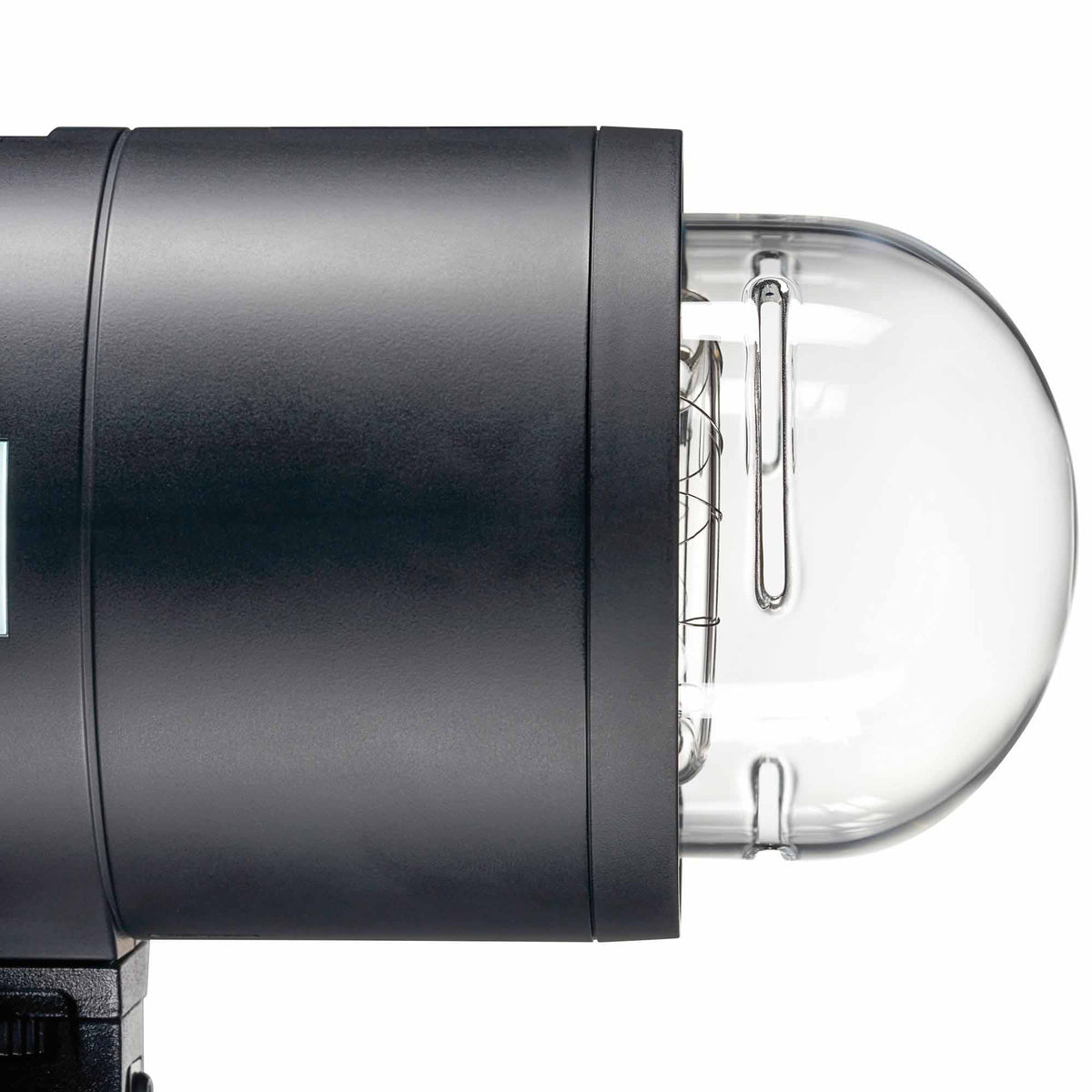

Light shaping is central to creating more deliberate images. Designed around an exposed flash tube for broad and even light spread, the Elinchrom ONE delivers the light quality Elinchrom is known for. It gives you a strong foundation for building clean, controlled light in a wide range of situations.
Your choice of light modifiers
The Elinchrom ONE is built around the Elinchrom OCF modifier mount and is also natively compatible with most Profoto® OCF light shapers. This gives you access to a broader range of tools without making your setup more complicated. The included Elinchrom OCF to Bayonet Adapter also allows quick mounting to reflectors and speedrings that use the traditional Elinchrom bayonet.
Do more with less
Engineered for efficiency, the Elinchrom ONE uses its 131 Ws output to deliver performance that competes well beyond what its size suggests. At 1 metre and ISO 100, it reaches f/11.9 with the Diffusion Dome attached. Combined with the HP Reflector, output increases up to f/45.2. The result is a compact light that remains genuinely useful across portraits, products, events and location work.

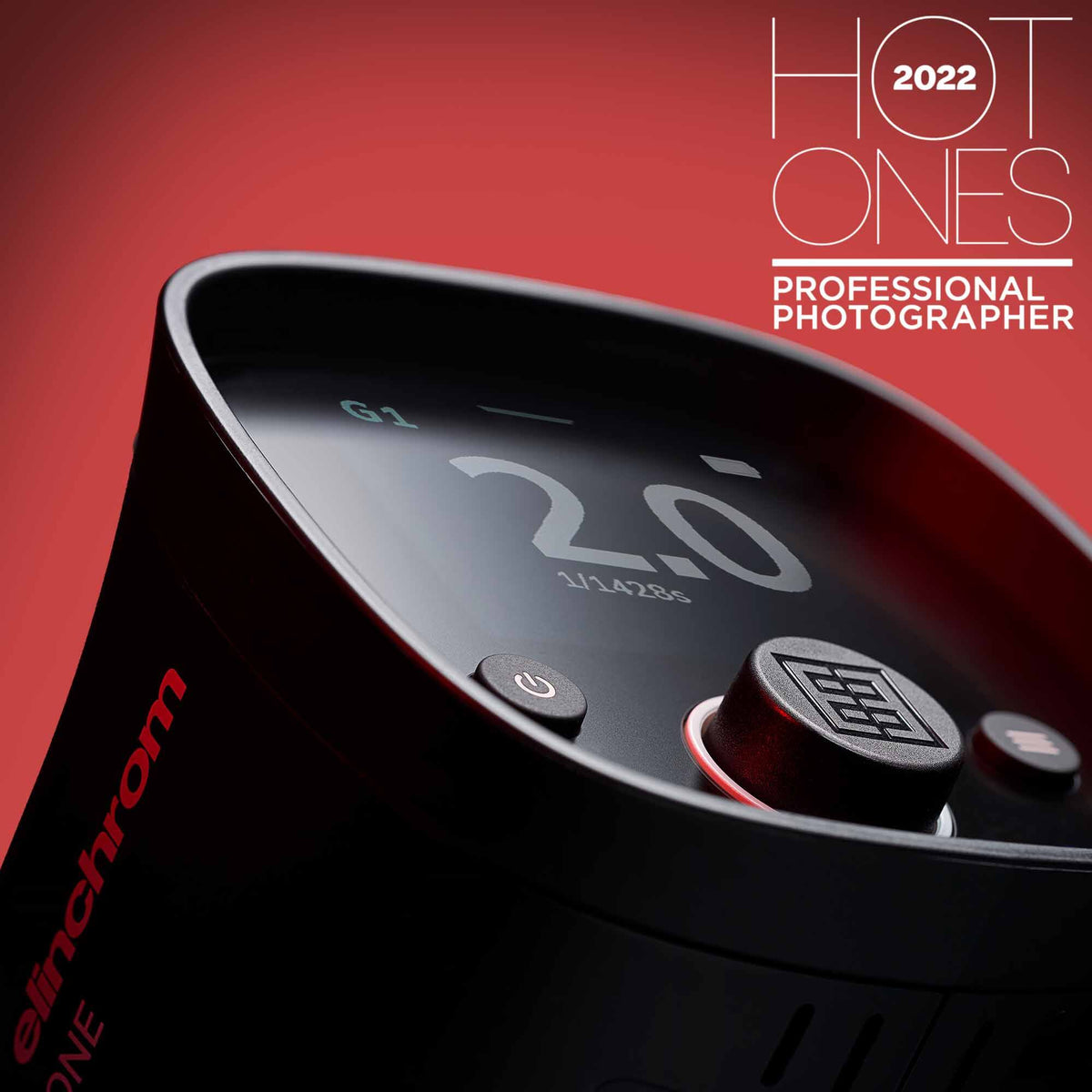

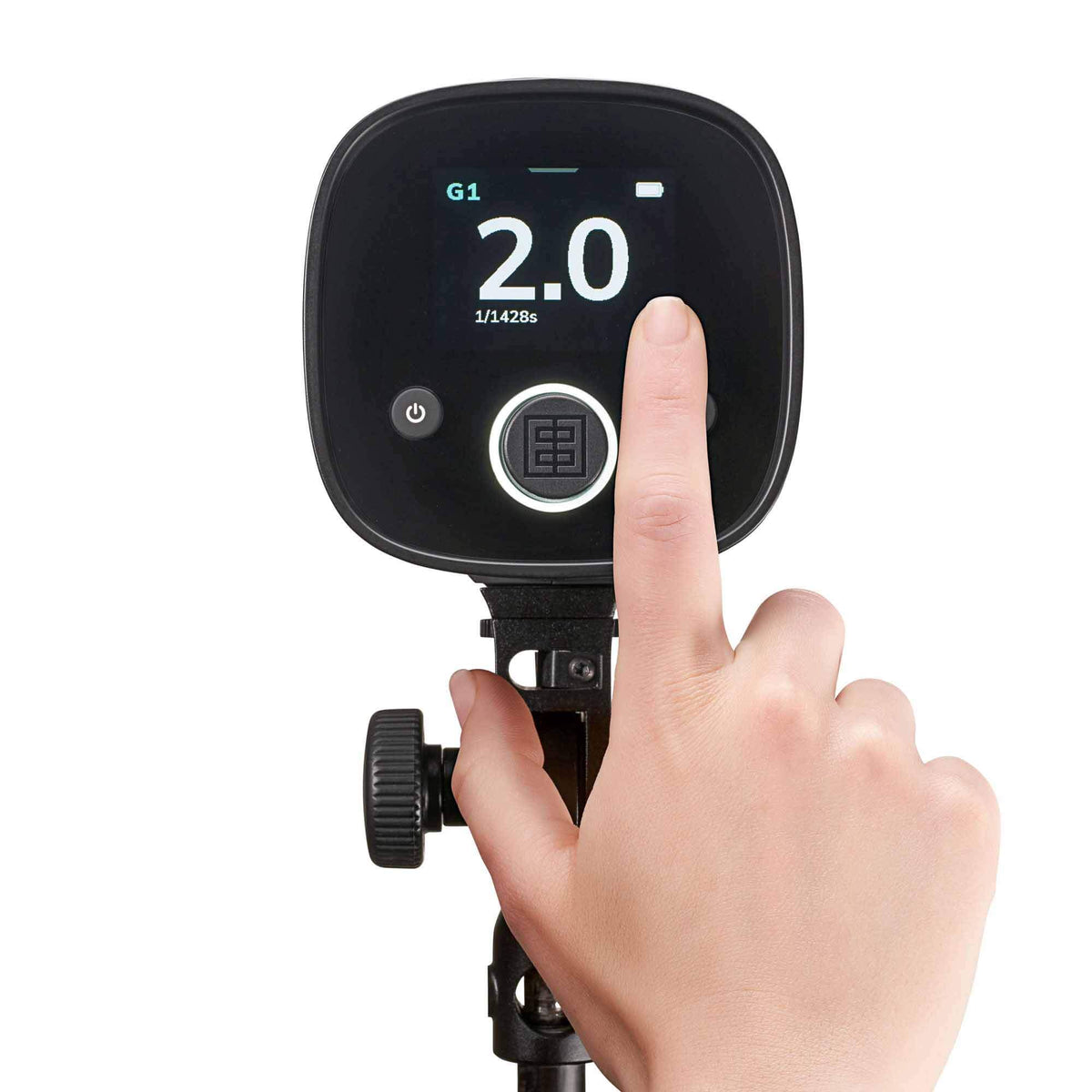

Navigate quickly
The touchscreen interface and updated menu structure are designed to make setup faster and daily use more intuitive. Adjust settings quickly, move through menus with less friction and keep your attention on the image rather than the equipment.
Key features and benefits
-
Supreme portability
At only 1.5 kg and similar in size to a 70–200 mm lens, the ONE is easy to carry and ready to travel with you. -
Integrated Li-Ion battery
Delivers up to 725 full-power flashes on a single charge while supporting a cleaner, more portable design for location work. -
USB-C charging
Charge the Elinchrom ONE from any suitable USB-C source without relying on proprietary chargers. -
Active Charging
Connect to a power source and continue shooting while the battery charges, even during active use. -
Elinchrom OCF modifier mount
Compatible with Profoto OCF light shapers and, via the included adapter, the traditional Elinchrom bayonet mount. -
Touchscreen interface
A streamlined interface designed for faster setup and easier access to core settings. -
Powerful bi-colour LED modelling lamp
Adjustable from 2700 K to 6500 K with 3000 lumens output and CRI 95 for both photo and video applications. -
Fast recycling and precise colour accuracy
Recycles in 0.9 seconds at full power and maintains a ±150 K colour temperature over the full power range. -
Sync up to 1/8000s with HSS
Freeze movement, reduce ambient light and work with greater flexibility in bright conditions. -
TTL with Manual Lock
Switch quickly from TTL to manual without losing your exposure settings. -
Smart Pro-Active Cooling
Learns your shooting rhythm and adapts the cooling cycle around the way you work. -

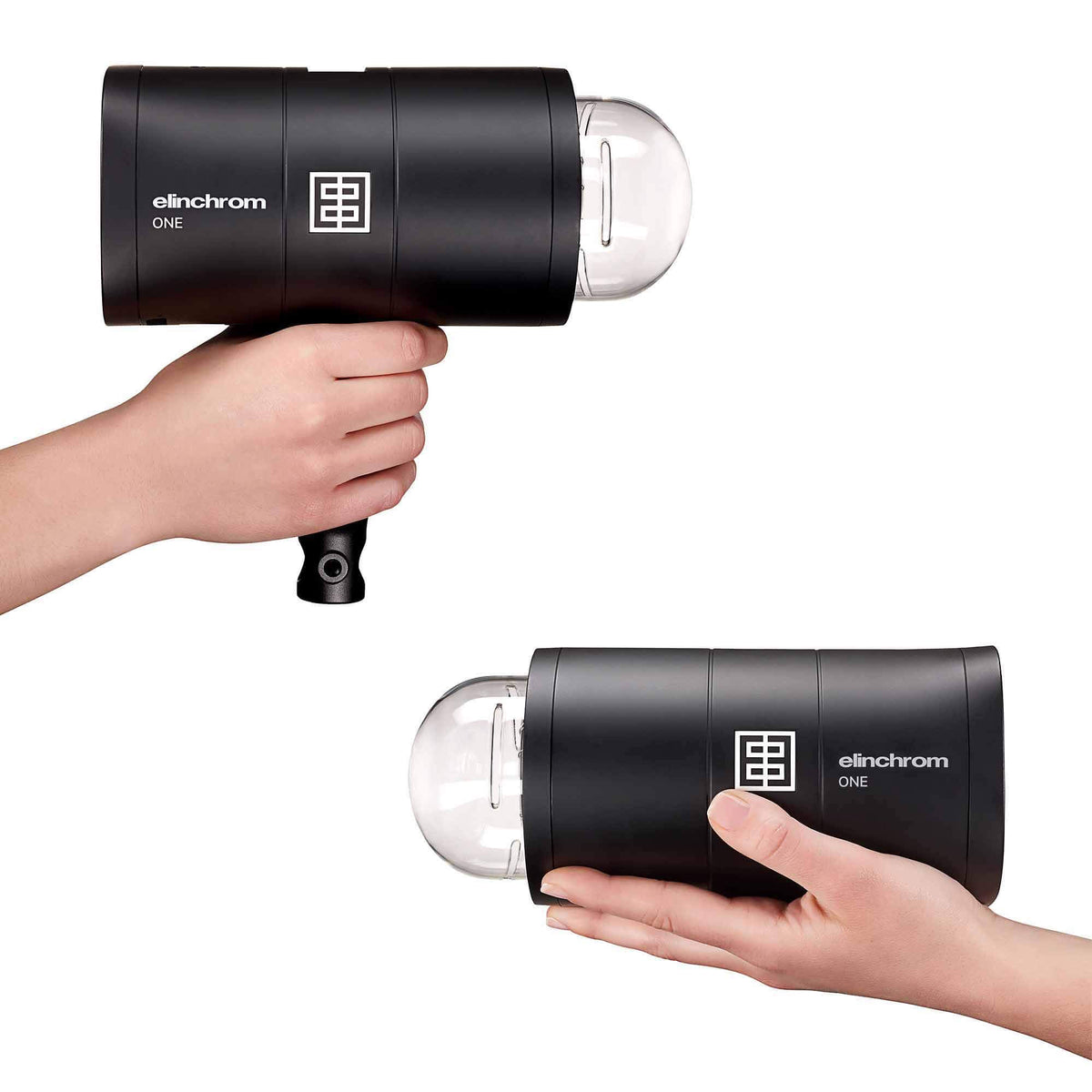

Removable tilt head
The two-way metal tilt head with 7–8 mm umbrella mount can be detached, making the ONE more ergonomic for hand-held use.

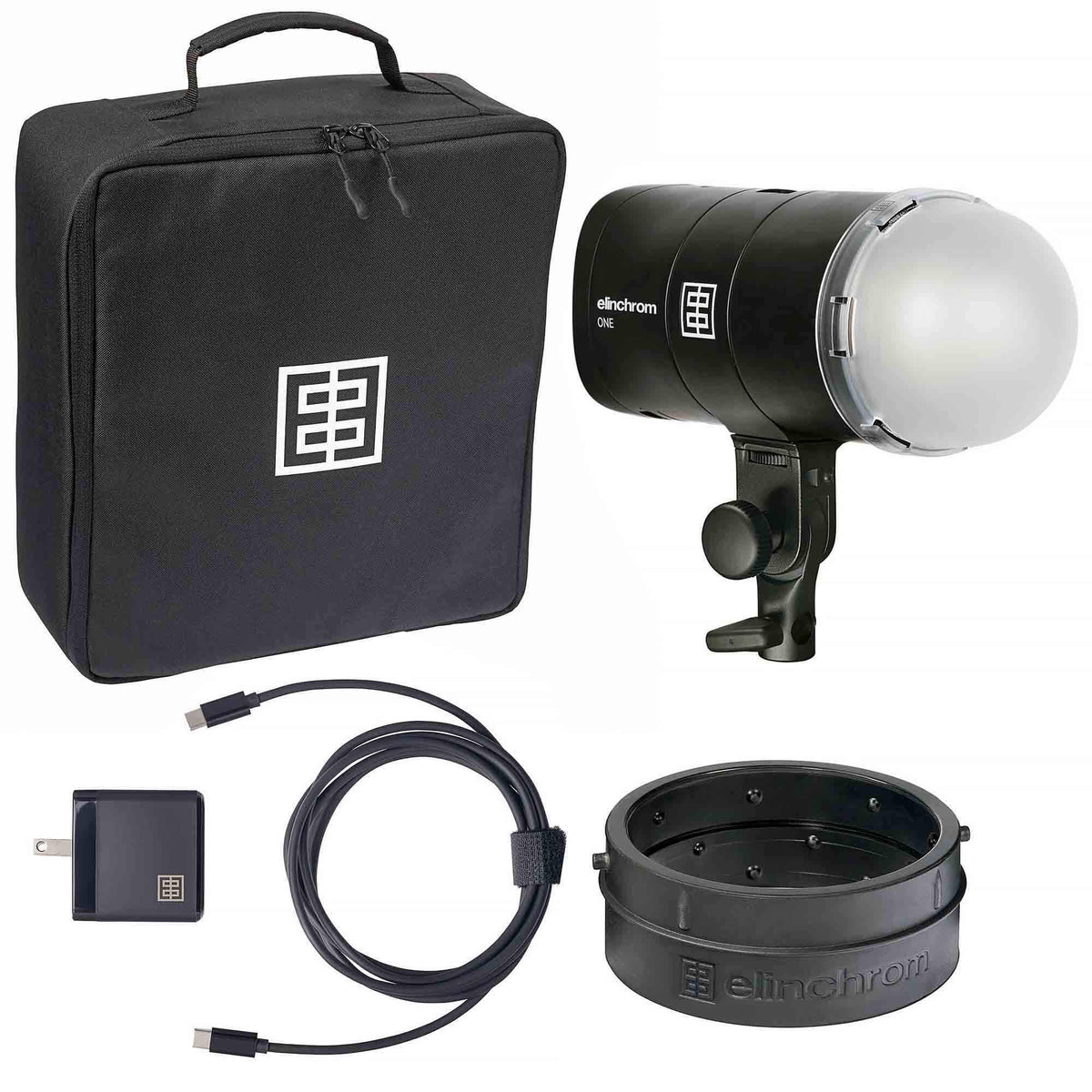

In the box
- Elinchrom ONE
- Elinchrom OCF Adapter
- Elinchrom OCF Diffusion Dome
- Elinchrom 100W USB-C Wall Charger
- Elinchrom USB-C Cable 1.8 m
- Elinchrom ONE Case
Specifications Elinchrom OFF Camera Flash
| Specifications | Elinchrom ONE | Elinchrom THREE |
|---|---|---|
| Energy | 131 Ws | 261 Ws |
| F-Stop (1m, 100 ISO, HP Reflector 26 cm, max power) | f/45.2 | f/64.3 |
| F-Stop (1m, 100 ISO, OCF Diffusion Dome, max power) | f/11.9 | f/22 |
| Power range (F-Stop) | 5 f-stop | 6 f-stop |
| Power range (Ws/J) | 7-131 Ws | 7-261 Ws |
| Power range display | 0.1-4.3 (Elinchrom scale) / 5.8-10 (10 scale) | 0.1-5.3 (Elinchrom scale) / 4.8-10 (10 scale) |
| Power increments in Manual / TTL mode | 0.1 F-Stop / 0.3 F-Stop | 0.1 F-Stop / 0.3 F-Stop |
| Flash duration t0.1 min/max power (Standard mode) | 1/1530 - 1/155 sec | 1/1550 - 1/255 sec |
| Flash duration t0.1 min/max power (Action mode) | 1/7000 - 1/625 sec | 1/8500 - 1/440 sec |
| Recycling time min/max power | 0.06 / 0.9 sec | 0.08 / 1.2 sec |
| Flash mode | Manual / TTL / HSS (with Transmitter Pro) | Manual / TTL / HSS (with Transmitter Pro) |
| Action mode | Faster flash duration over the power range | Faster flash duration over the power range |
| TTL Function | Yes, with Transmitter Pro | Yes, with Transmitter Pro |
| HSS Function | Yes, with Transmitter Pro X | Yes, with Transmitter Pro X |
| Flash colour temperature at max power | 5900 K (Action) / 5600 K (HSS) | 5900 K (Action) / 5600 K (HSS) |
| Flash colour stability over the power range (all modes) | ± 150 K | ± 150 K |
| Power stability | ± 0.5% | ± 0.5% |

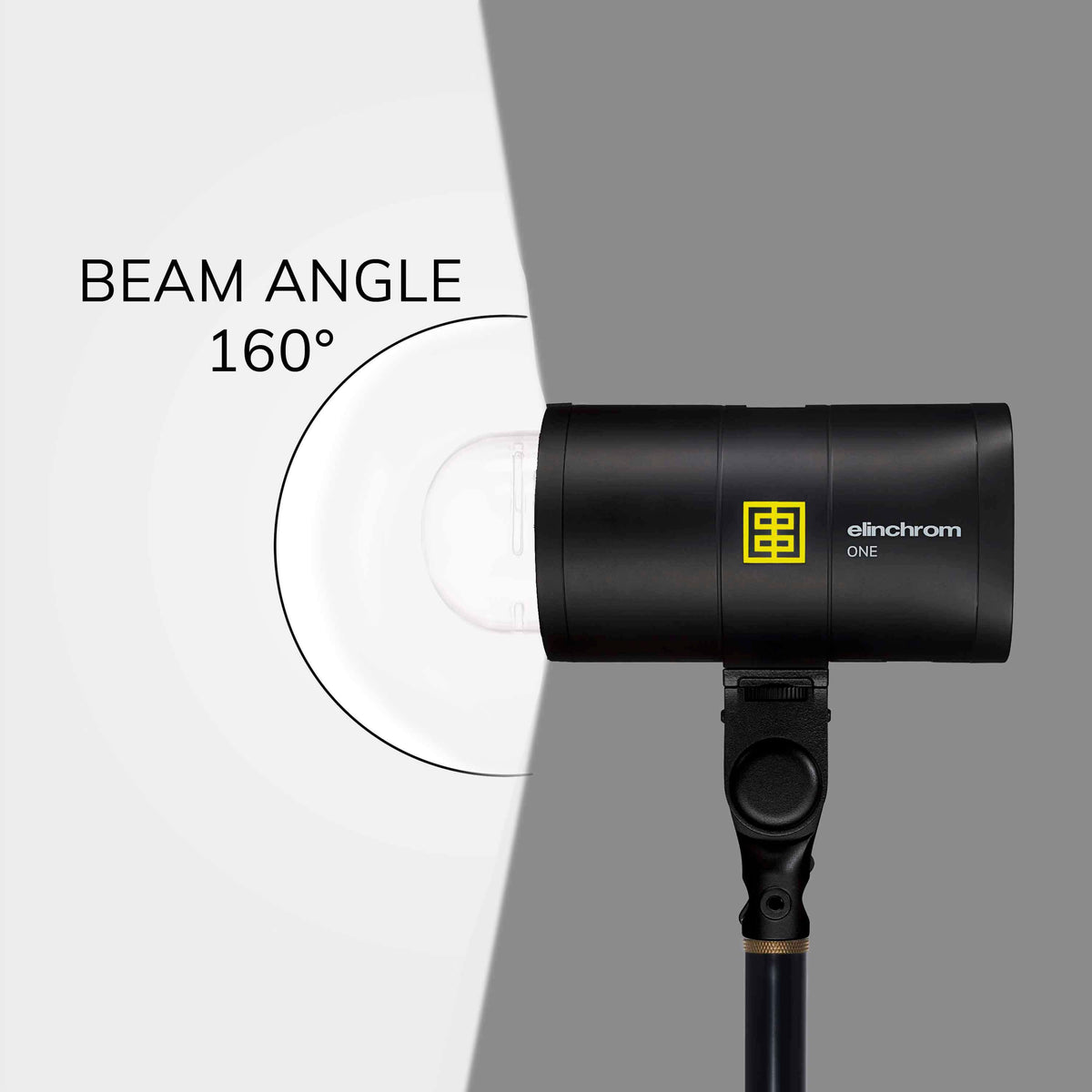

| Beam Angle (degrees) | 160° | 160° |
| Auto power dumping | Adjusts power settings automatically in real time | Adjusts power settings automatically in real time |
| Fan cooled | Smart proactive cooling | Smart proactive cooling |
| Input | USB-C | USB-C |
| IP Class | IP20 | IP20 |
| Flash Tube | EL-24091 | EL-24091 |
Battery | ||
| Battery | Li-Ion - Built-in - 41.04Wh | Li-Ion - Built-in - 41.04Wh |
| Battery capacity min/max power (LED lamp OFF) | 9700 / 725 | 11250 / 525 |
| Battery capacity min/max power (LED lamp ON 100%) | 9000 / 420 | |
| Battery charge status | On the display if ON and side logo if OFF | On the display if ON and side logo if OFF |
| Charging time (with 65W USB-C Wall Charger) | 60 m (80%) – 80 m (100%) / Fast charge (unit ON) | 60 m (80%) – 100 m (100%) / Fast charge (unit ON) |
Charging time (with 18W 20000 mAh Power Bank) USB-C sources need to be able to deliver at least 25W for fast charge to be activated | 80 m (80%) – 135 m (100%) / Fast charge (unit ON) 105 m (80%) – 180 m (100%) / Slow charge (unit OFF) | 80 m (80%) – 135 m (100%) / Fast charge (unit ON) 105 m (80%) – 180 m (100%) / Slow charge (unit OFF) |
LED | ||
| LED modeling lamp modes | ON/OFF, free, proportional, VFC | ON/OFF, free, proportional, VFC |
| LED modeling lamp power | 20W / equivalent to 120W / 3000 lm / CRI 95 | 20W / equivalent to 120W / 3000 lm / CRI 95 |
| LED modeling lamp color temperature | Presets from 2700 K to 6500 K | Presets from 2700 K to 6500 K |
| LED run time (LED only, min/max power) | 10 hours / 90 minutes | 10 hours / 90 minutes |
Radio | ||
| Skyport (built-in) | 20 frequency channels, 4 Groups | 20 frequency channels, 4 Groups |
| Skyport distance range (Transmitter Pro, manual mode) | Indoor: up to 60 m / Outdoor: up to 200 m | Indoor: up to 60 m / Outdoor: up to 200 m |
| Bluetooth® (built-in) | Version 4.2 / Compatible Studio Software Win, Mac, iOS, Android | Version 4.2 / Compatible Studio Software Win, Mac, iOS, Android |
| Skyport Frequency | 2404~2478MHz | 2404~2478MHz |
| Bluetooth® Frequency | 2402~2480MHz | 2402~2480MHz |
| WLAN | 2412~2472MHz | 2412~2472MHz |
Size | ||
| Umbrella fitting (on tilt head) | 7-8 mm | 7-8 mm |
| Dimensions with Diffusion Dome and tilt head | 25.3 x 16.5 x 10.5 cm | 23.3 x 16.5 x 10.5 cm |
| Dimensions without Diffusion Dome and tilt head | 24.5 x 10 x 10 cm | 22.5 x 10 x 10 cm |
| Weight (with/without tilt head) | 1.5 kg / 1.3 kg | 1.65 kg / 1.45 kg |
Product FAQ
Yes. Elinchrom ONE and THREE have built-in Bluetooth and can be controlled via Elinchrom Studio Software as well as the iOS and Android apps. They also include a built-in Skyport Bridge, allowing them to communicate automatically with older Elinchrom flashes that can also be controlled from smartphone and computer.
Active Charging allows you to charge the battery while shooting. On ONE and THREE, charging happens via USB-C, which makes it possible to use a USB-C power adapter or power bank to charge the built-in battery while the unit is in use.
To lock the touchscreen on the ONE and THREE, press the ON button while turning on the device for 9 seconds. A lock symbol will confirm that the touchscreen is locked. To unlock it, turn the device off and on again.
Yes. The built-in LED light on ONE and THREE works well for film and video production. Light quality is high, helping colours and skin tones reproduce more accurately. Brightness can be adjusted, and colour temperature can be set in fixed steps from 2700 K to 6500 K. Output is approximately 3000 lumens, equivalent to roughly 120 W halogen light.
ONE and THREE use an OCF mount as standard, giving access to a wide range of light shapers from different manufacturers. An Elinchrom bayonet adapter is also included, which means the full Elinchrom light shaper range can be used as well.
Yes, the battery can be replaced through service. In practice, this is a question more often asked by prospective owners than by long-term users, since battery capacity and battery life are strong parts of the product. The built-in battery offers high capacity, and advanced battery management helps support long service life. Combined with Active Charging via USB-C, it gives ONE and THREE a flexible and dependable power solution. Tip: always recharge the battery after shooting. A fully discharged Li-Ion battery can be damaged if left without maintenance charging for too long.
